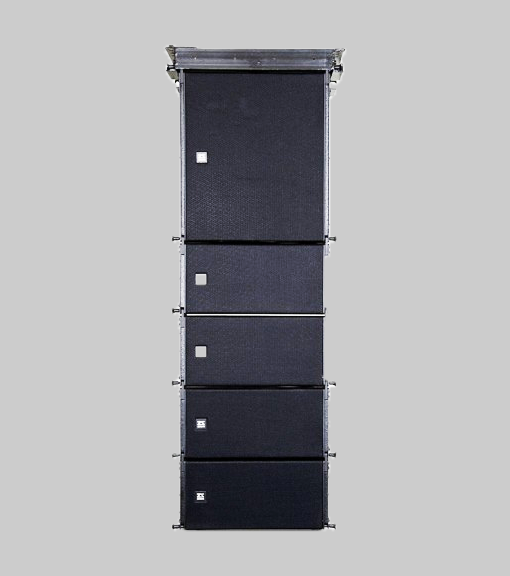

LA110

Description

TECHNICAL SPECIFICATIONS:

Frequency response:       60 Hz-18 kHz(±3 dB) 50 Hz-20 kHz(-10 dB)

Nominal coverage:         100¡(H) 10¡(V) adjustable

Sensitivity (1W/1m):      HF:112 dB(2 kHz-16 kHz) LF:103 dB(500 Hz-2 kHz)

Power rating:                  HF/LF:80W/350W

Nominal impedance:      HF/LF:16/16 ohm

Maximum SPL:                HF:137 dB LF:134 dB

Drivers:                            LF 1 x 10″ woofer

HF 1 x 3″ compression driver

PHYSICAL DATA

Dimension(HXWXD):    308 x 580 x 390mm / 12″x23″x15″

Weight:                           22.5 kg / 50 lbs

Connectors:                    2 x NL4 connectors

Speaker cables               1+1-ÉLF, 2+2+ÉHF

Materials:                       15mm, 18mm Baltic birch plywood

Finish:                             Black Polyurea paintings

Grille                               Black epoxy mesh grille with acoustically reticulated cloth

Rigging:                          0,1 ,2,3,4,5,6,7,8,9,10degree adjustable
